12 mm Siliconized Glass Cover Slides
Applications
- Siliconized glass cover slides for hanging & sitting drop crystallization
- Hanging drop crystallization
- Sitting drop crystallization
- Sandwich drop crystallization
Features
- High purity of glass
- Siliconized, hydrophobic glass surface
- 0.22 mm & 0.96 mm glass thickness
- 12 mm glass diameter
- Circle
- 0.22 mm glass thickness is UV Compatible (>85% transmission)
Description
Siliconized glass cover slides allow a droplet to be suspended in a position which provides near optimal conditions for vapor diffusion with the surrounding reservoir solution.

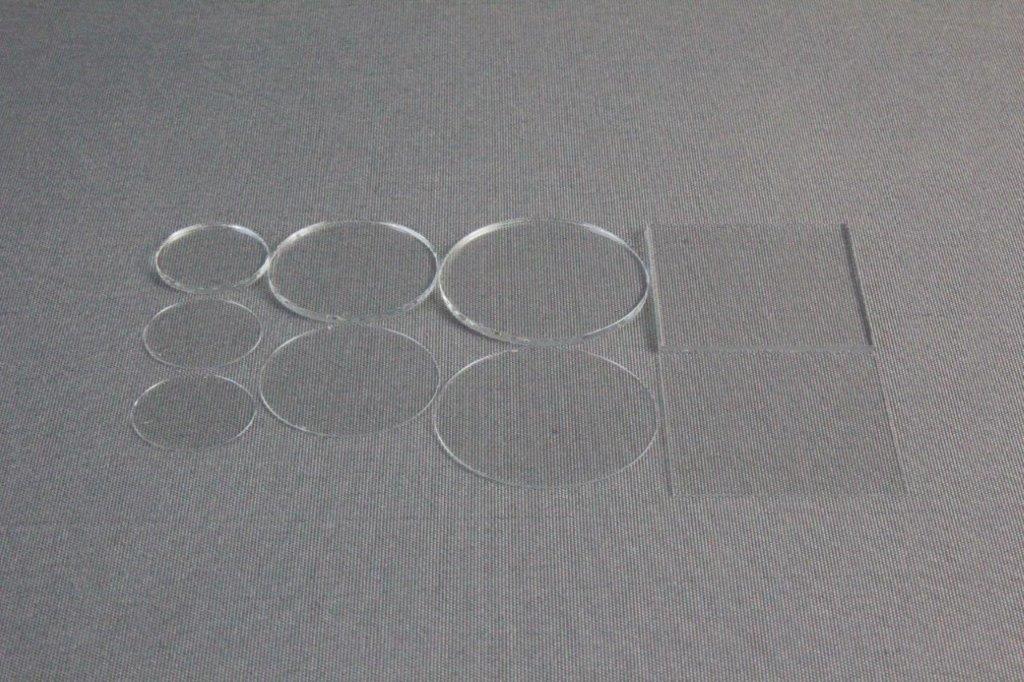

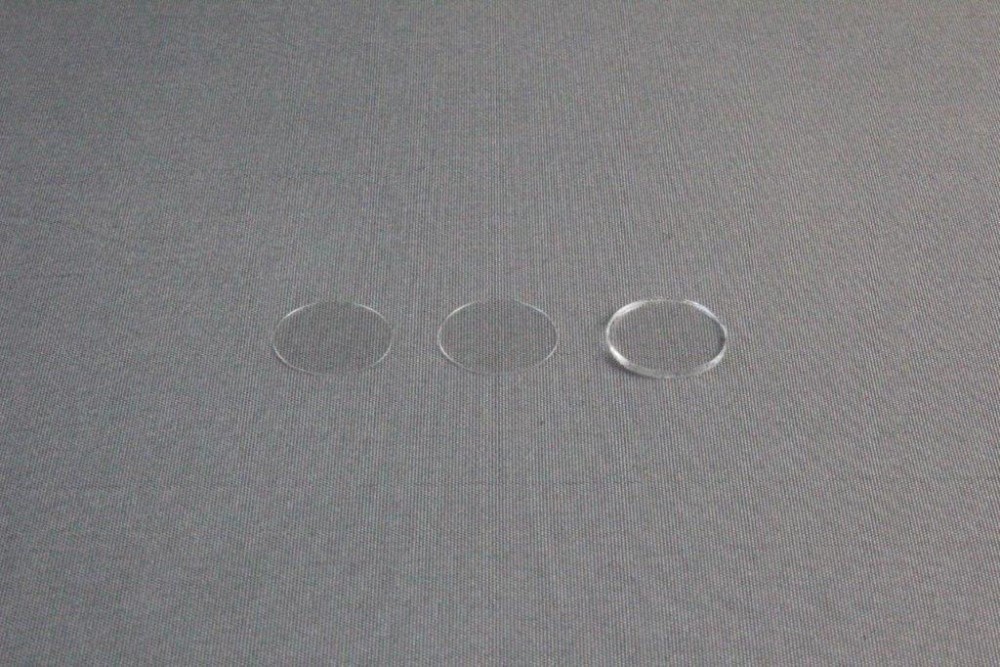

These siliconized glass cover slides provide a consistent, high quality finish for crystallization experiments. The hydrophobic surface produces a drop which “stands well” and does not flatten on the glass. The siliconized surface prevents the adhesion of crystals and precipitate onto the glass surface. Use Dow Corning Vacuum Grease (HR3-510) or Dow Corning 7 Release Compound (HR3-508) to seal cover slide to plate. Available in 12, 18 or 22 mm diameter circles and 22 mm diameter squares. Available in 0.22 mm or 0.96 mm glass thickness. The 0.96 mm thick slides are virtually unbreakable during crystallization handling.
Critical surface tension Untreated glass 78 dynes/cm Siliconized glass 31 dynes/cm Surface resistivity Untreated glass 1×1012 ohms Siliconized glass 1.2 x 1013 ohms Coefficient of friction static, glass slide on glass slide Untreated 0.9-1.0 Siliconized 0.2-0.3 Protein adsorption (100 hours) Untreated glass 0.13 mg/mm2 Siliconized glass 0.01-0.02 mg/mm2
CAT NO
HR3-278T
NAME
DESCRIPTION
0.5 oz pack (~240 slides)
PRICE
$54.00
cart quote
CAT NO
HR3-277
NAME
DESCRIPTION
0.5 ounce pack (~240 slides)
PRICE
$54.00
cart quote
CAT NO
HR3-279
NAME
DESCRIPTION
5.0 ounce case (~2,400 slides)
PRICE
$519.00
cart quote
CAT NO
HR8-088
NAME
DESCRIPTION
1.0 ounce pack (~106 slides)
PRICE
$32.00
cart quote
CAT NO
HR8-090
NAME
DESCRIPTION
10.0 ounce case (~1,060 slides)
PRICE
$313.00
cart quote
